75-T Series Loads Technical Information

Specifications:

• Average Power Rating:
  • 75 W MAX. @ 40° C
  • 90 W MAX. @ 25° C
• Peak Power: 2.5 kW
  • Pulse width not to exceed 4 mS
  • Duty cycle not to exceed average power rating
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: ANY (convection cooled)
• Finish: Black Anodized
• Nominal Size: 6.28" x 2.30" (for specifics, see images below)
• Weight: Approx. 1.28 LBS

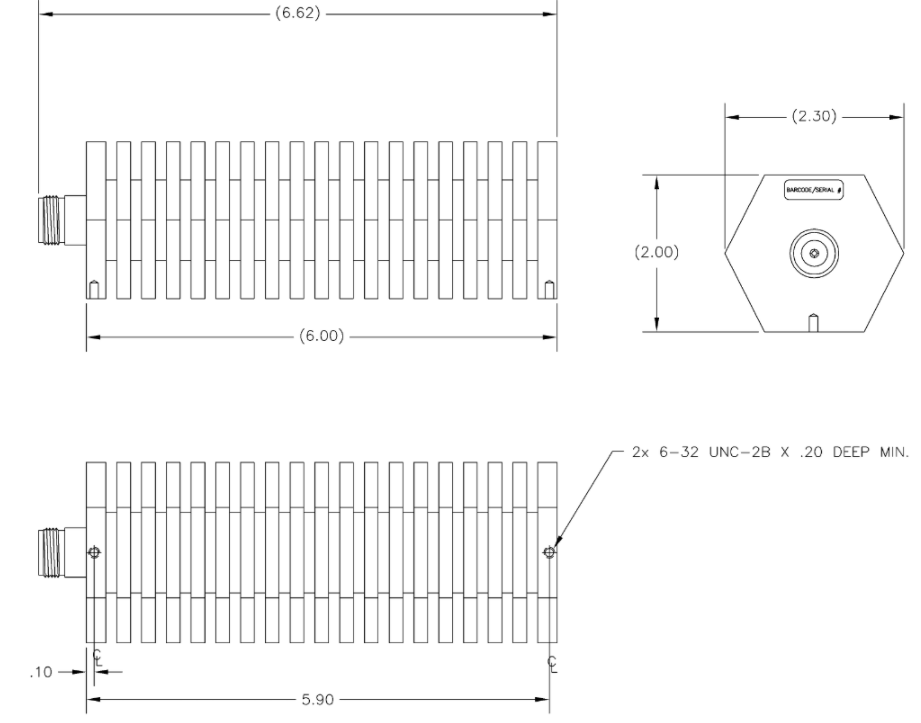

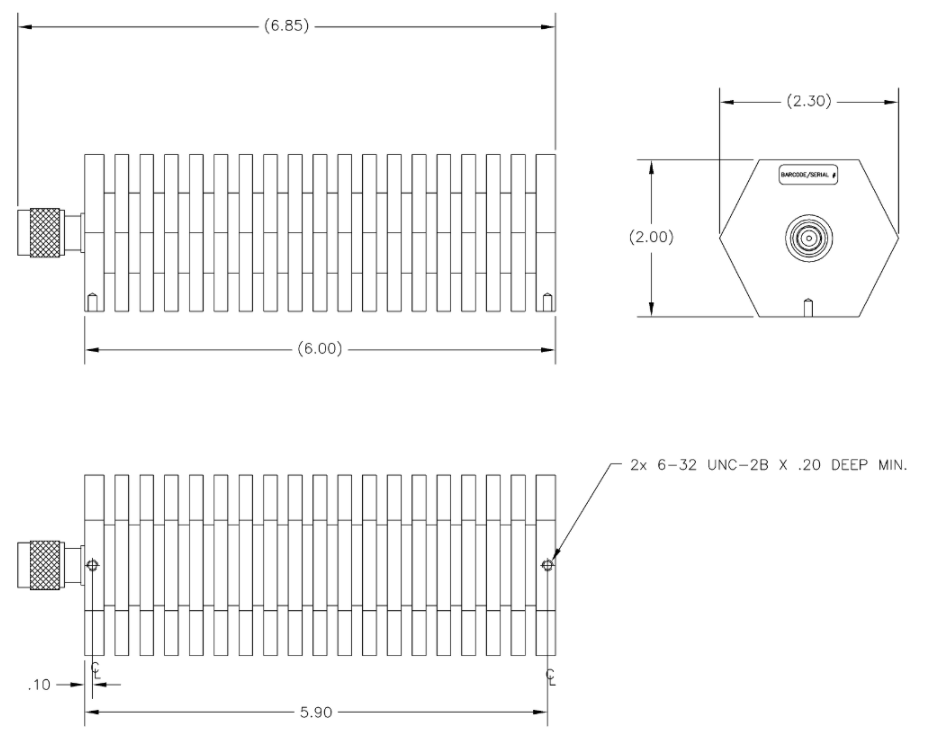

For the 75-T-FA:

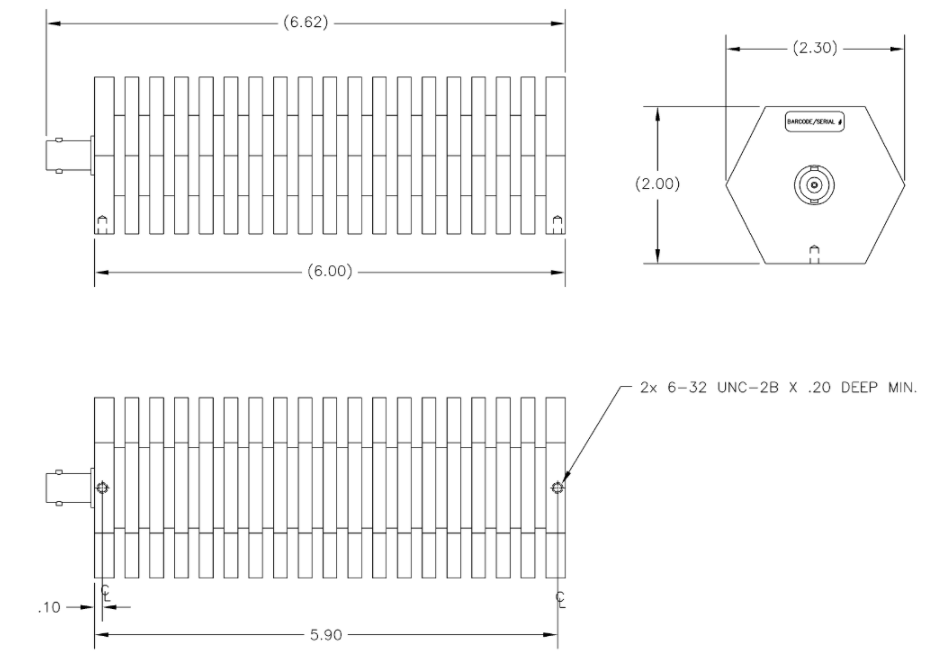

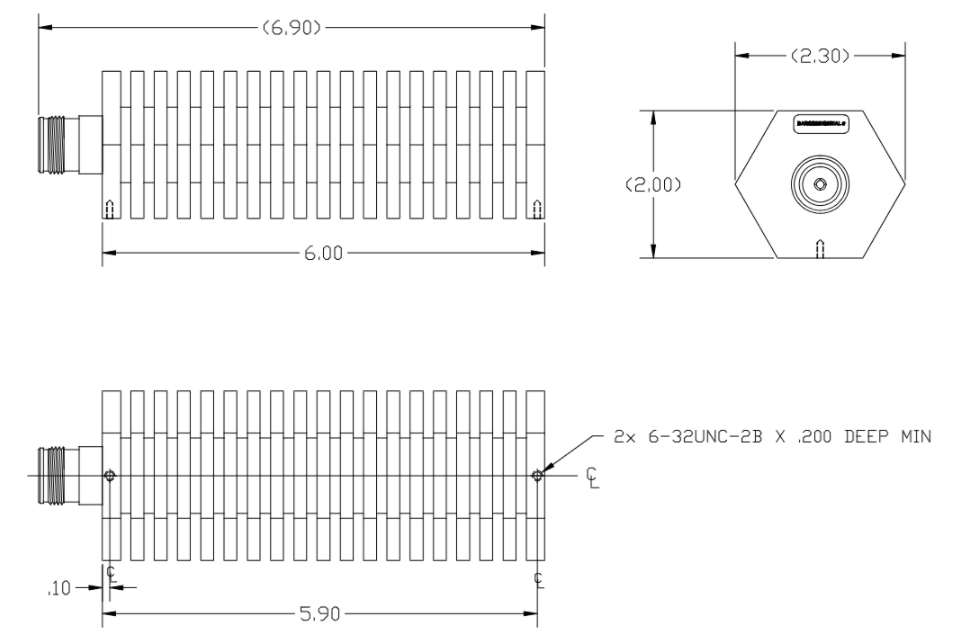

For the 75-T-FB:

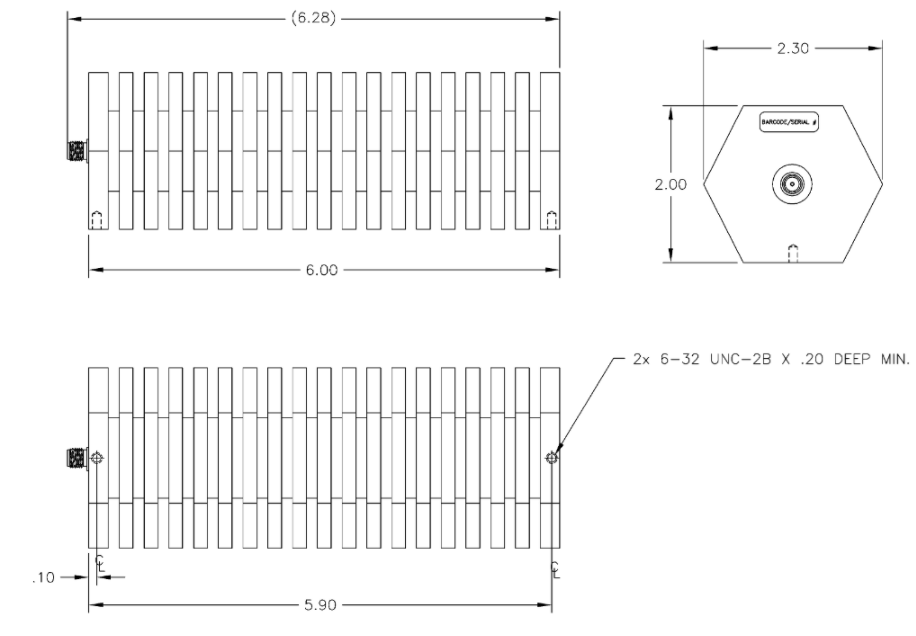

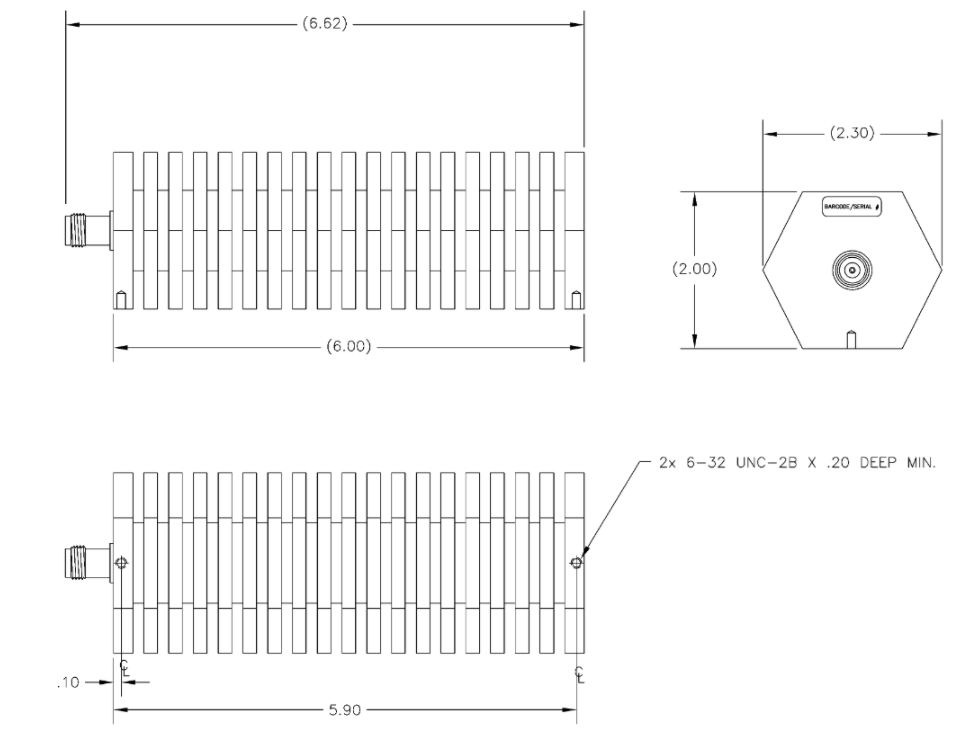

For the 75-T-FC:

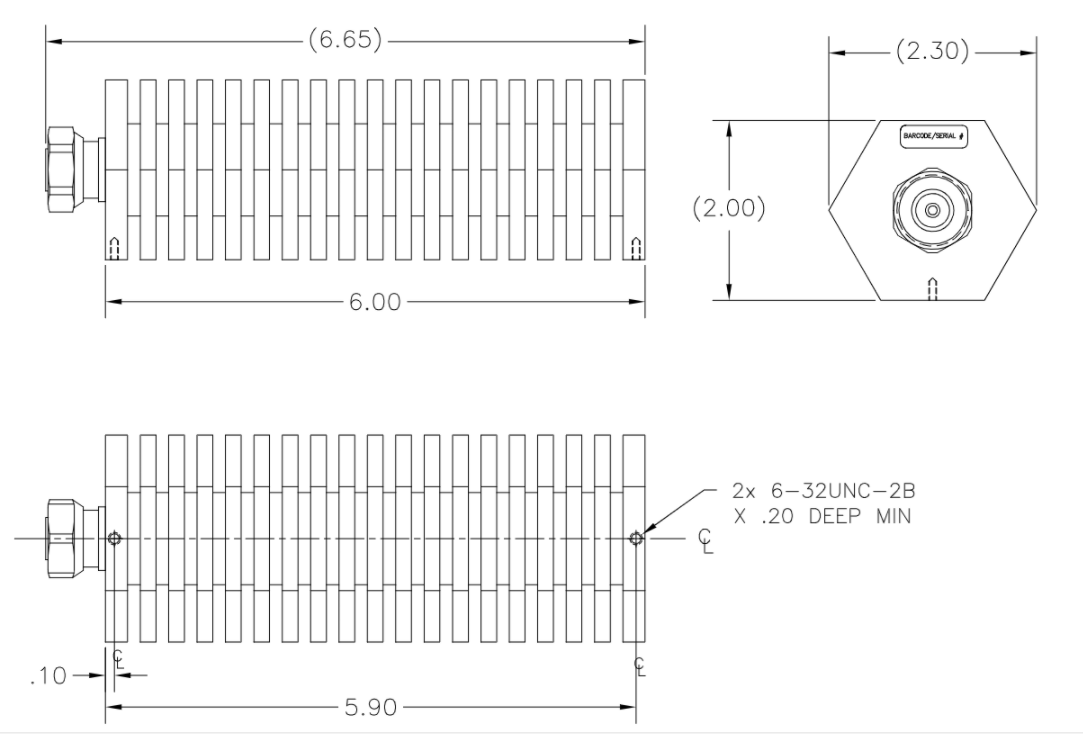

For the 75-T-FE:

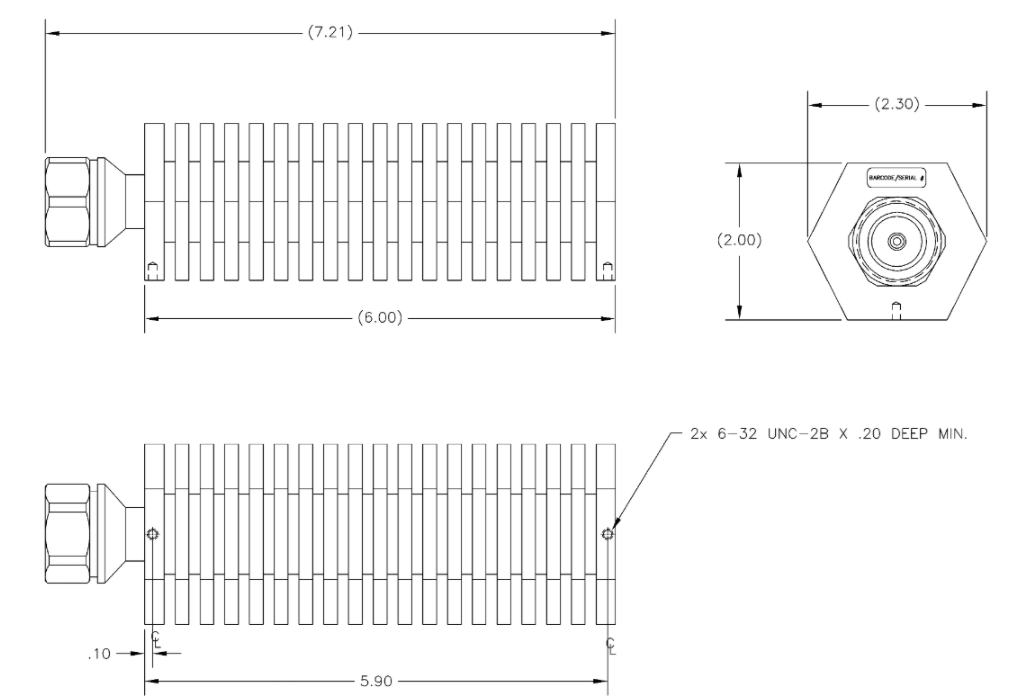

For the 75-T-FN:

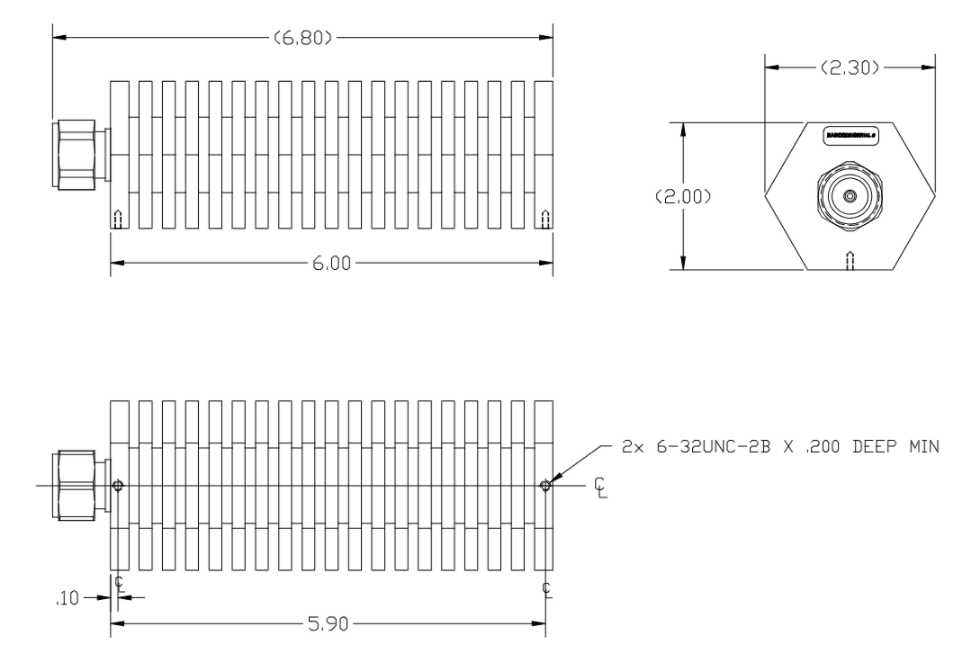

For the 75-T-FT:

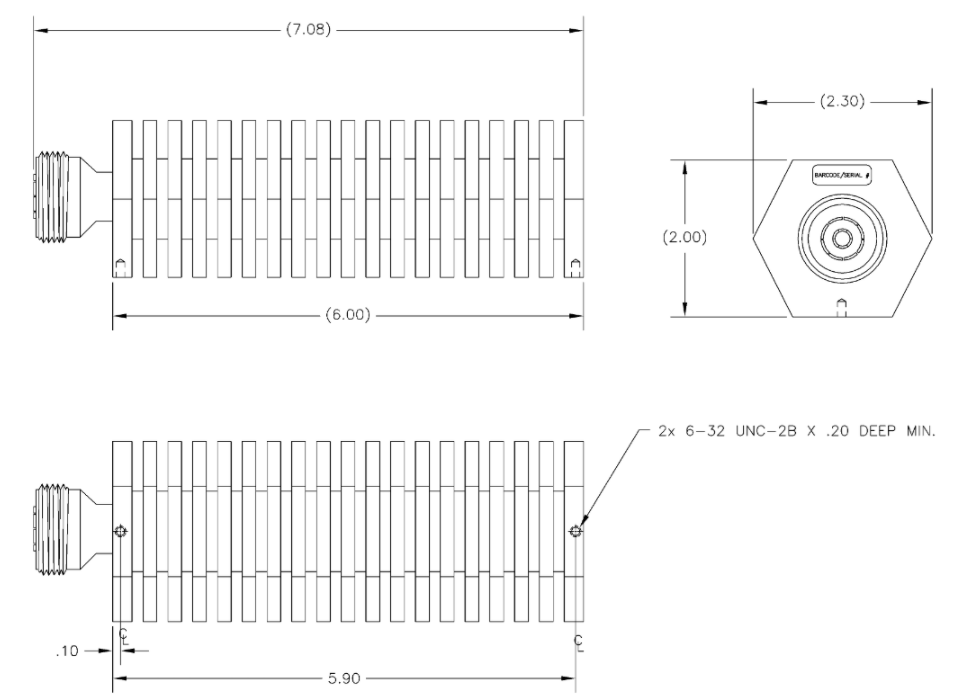

For the 75-T-MB:

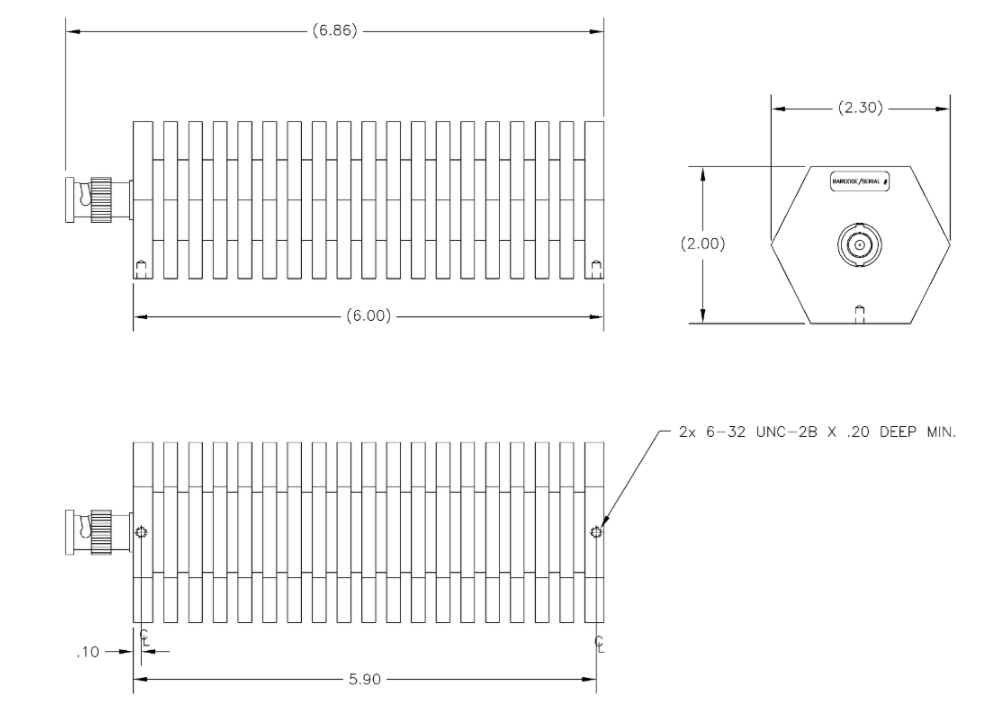

For the 75-T-MC:

For the 75-T-MD:

• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C

For the 75-T-ME:

For the 75-T-MN:

For the 75-T-MT:
