Specifications:
- Power Rating:
- 80 kW continuous
- Frequency Range & VSWR:
- 1 kHz to 800 MHz @ 1.15:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Connector: 6-1/8" EIA flanged
- Water Temperature Range: +5° C to +60° C
- Coolant: potable or distilled water and up to 50% ethylene glycol
- Minimum Flow Rate: 9 gpm (34.2 liters/min) @ 5° C to 12 gpm (45.6 liters/min) @ 60° C
- Operating Position: Any
- Finish: Lusterless Black Enamel

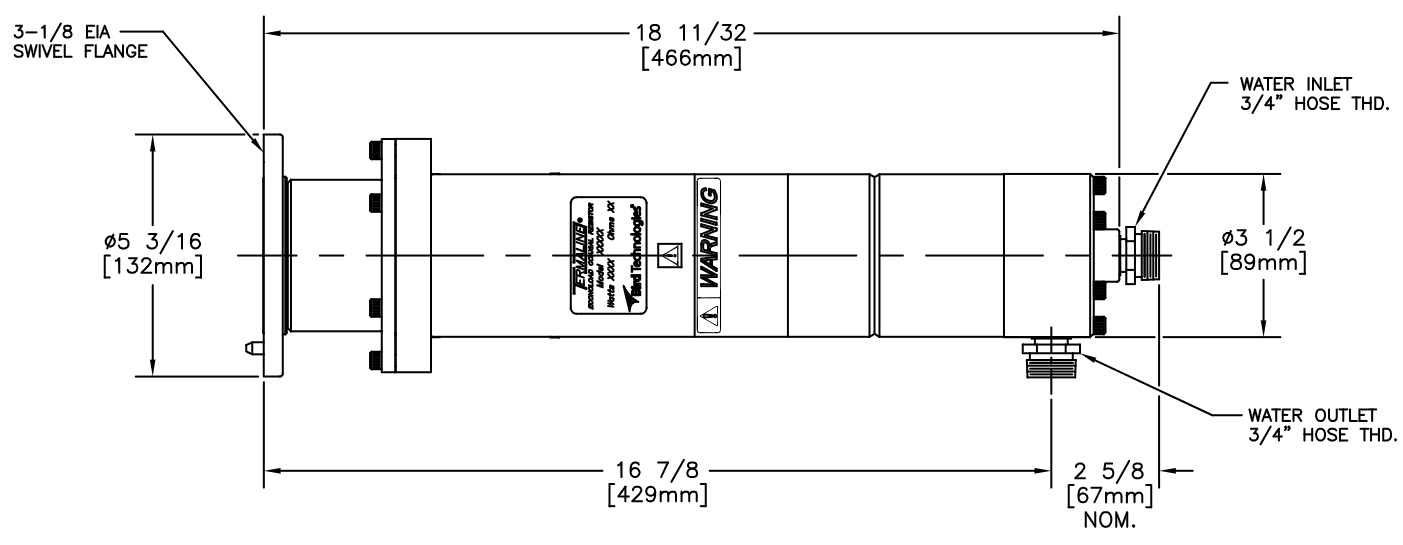

- Nominal Size: 34" x 5" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 25 LBS (11.4 kg)
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
