Specifications:
- Power Rating:
- 150 WATTS CW
- Frequency Range & VSWR:
- DC to 1 GHz @ 1.10:1 MAX.
- 1 GHz to 2.5 GHz @ 1.20:1 MAX.
- 2.5 GHz to 4 GHz @ 1.30:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Ambient Temperature Range: -40° C to +45° C
- Coolant: 0.5 gal (1.9 liters) Refined Mineral Oil
- Operating Position: Horizontal only
- Finish: Grey Powder Coat

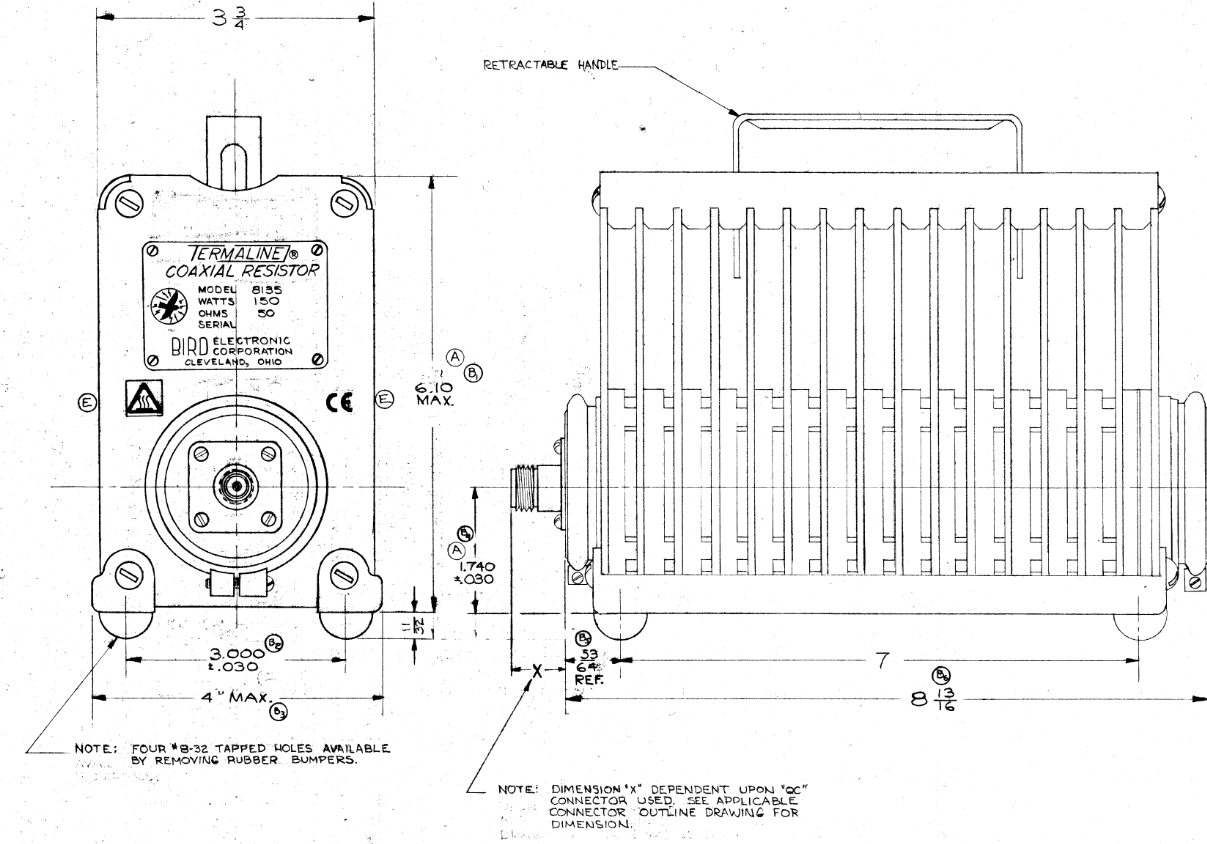

- Nominal Size: 8-13/16" x 4" x 6-7/16" (for specifics, see images below) *
- Weight: Approx. 6 LBS (2.7 kg)
