Specifications:
- Power Rating:
- 250 WATTS CW
- Frequency Range & VSWR:
- DC to 1 GHz @ 1.10:1 MAX.
- 1 GHz to 1.8 GHz @ 1.20:1 MAX.
- 1.8 GHz to 2.5 GHz @ 1.30:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Ambient Temperature Range: -40° C to +45° C
- Coolant: 0.35 gal (1.3 liters) Silicone Oil
- Operating Position: Horizontal only
- Finish: Grey Powder Coat

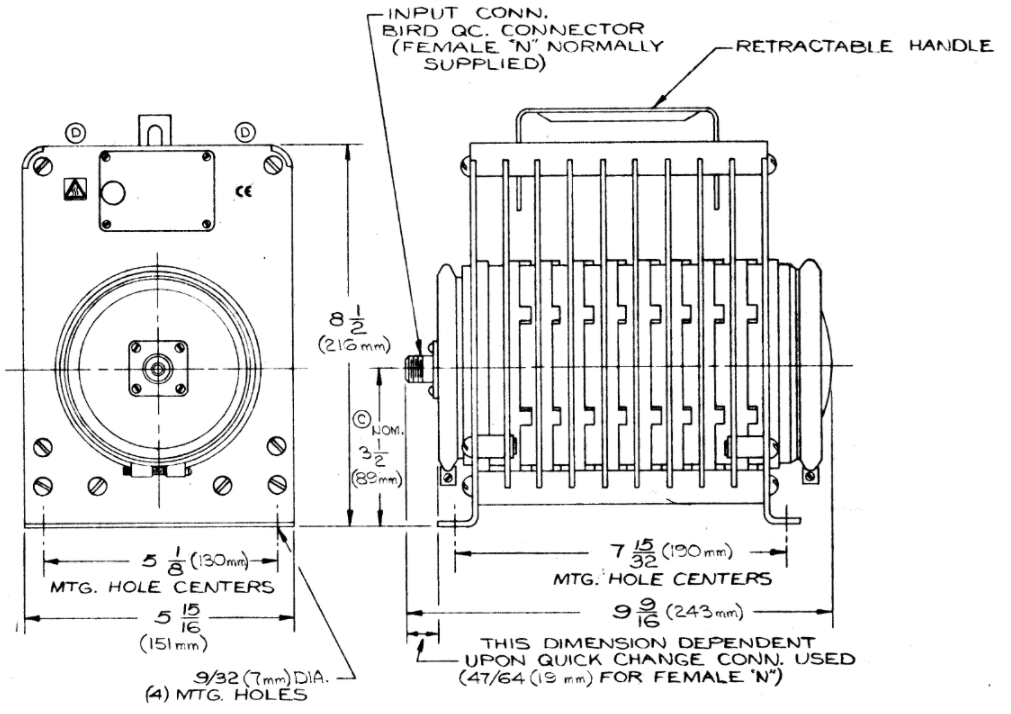

- Nominal Size: 9-9/16" x 5-5/16" x 8-1/2" (for specifics, see images below) *
- Weight: Approx. 10 LBS (4.5 kg)
