300-WT Series Loads Technical Information

Specifications:

• Power Rating:
  • 300 W @ 40° C
  • 360 W @ 25° C
  • Derated linearly to 0 W from 40° C to 120° C
• Peak Power Rating: 2.5 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average rated power
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz at 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C
• Humidity: 95% Non-Condensing
• Operating Position: Standoffs down
• Finish: Black Anodized Aluminum
• Nominal Size: 7.6" x 5.4" x 4.8" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 4.7 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

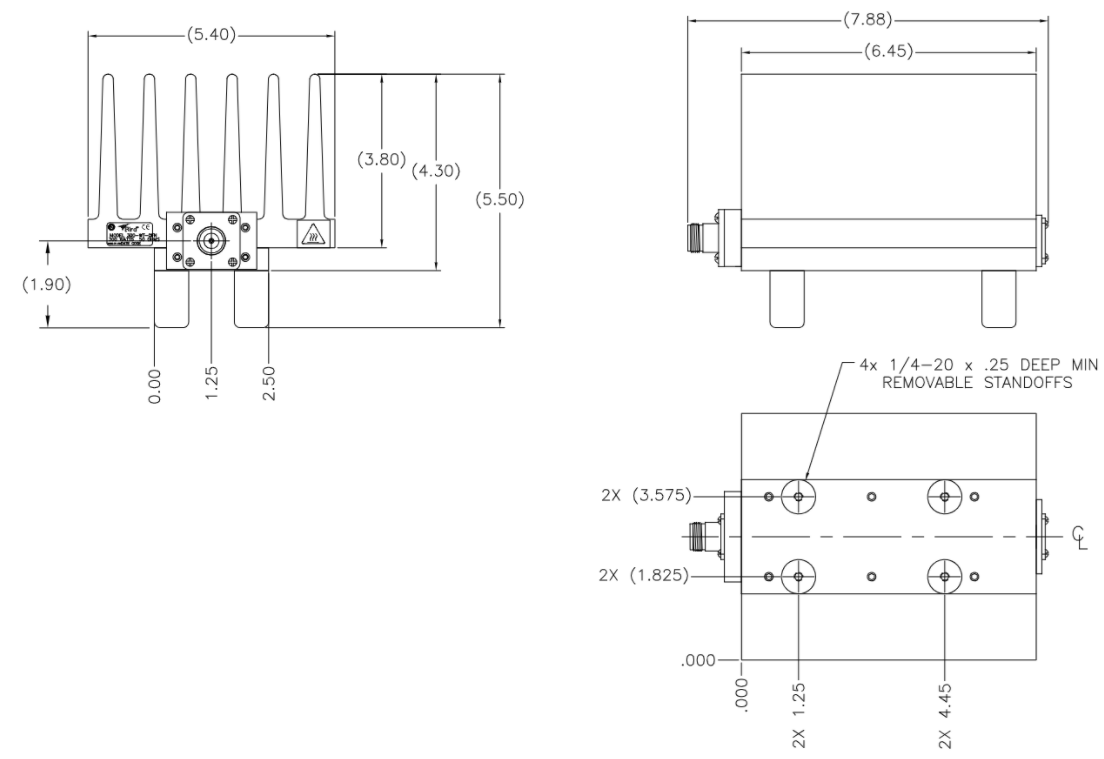

For the 300-WT-FB:

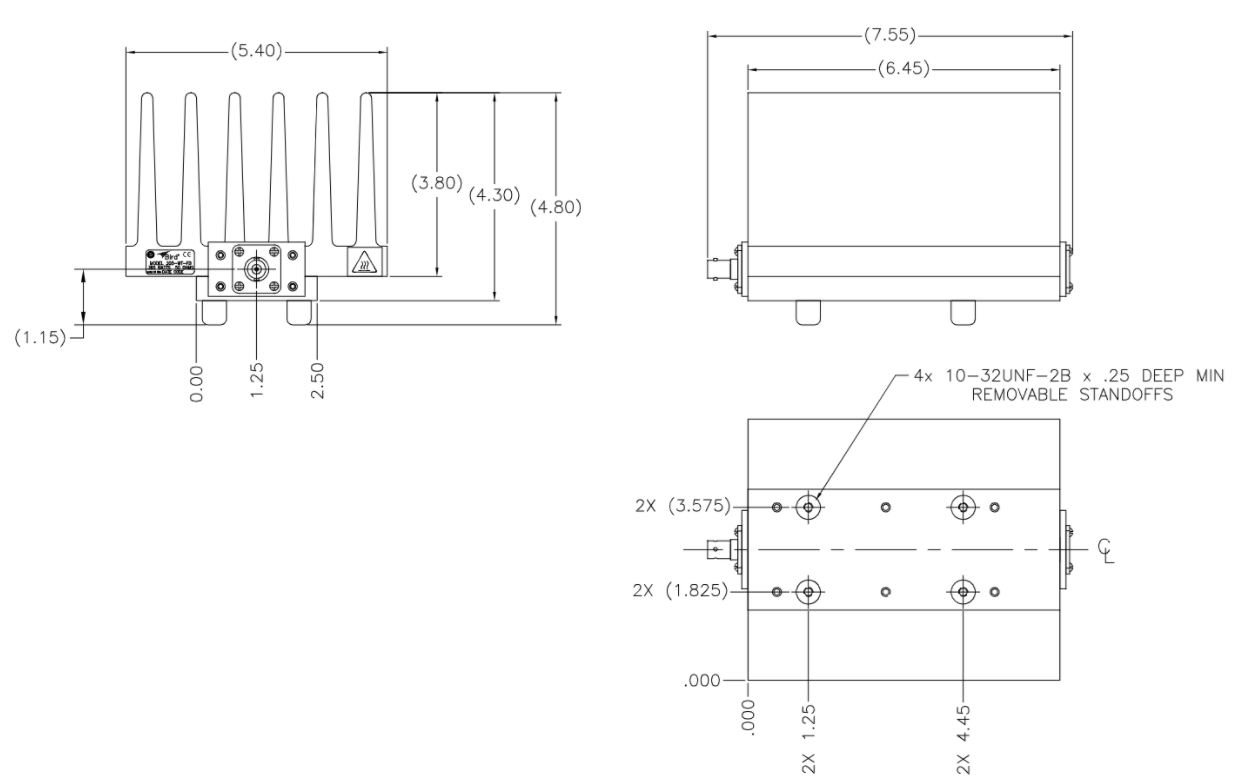

For the 300-WT-FE:

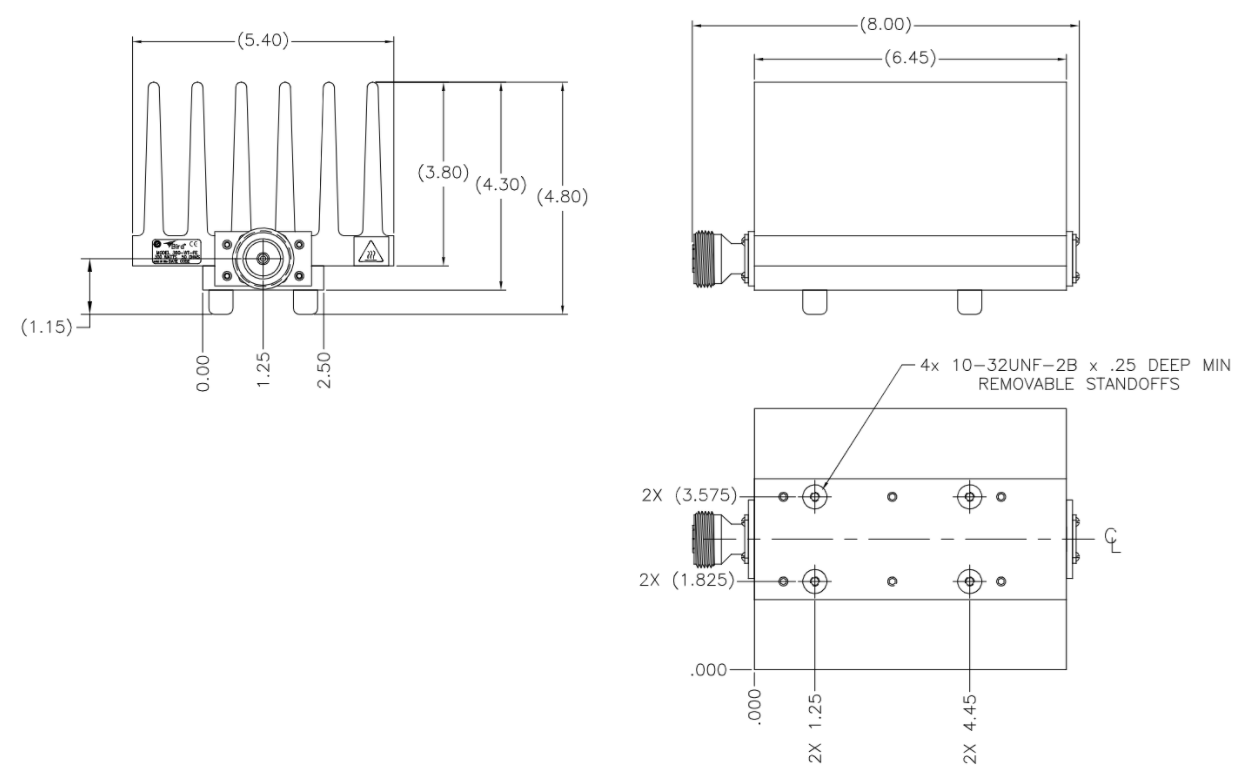

For the 300-WT-FN:

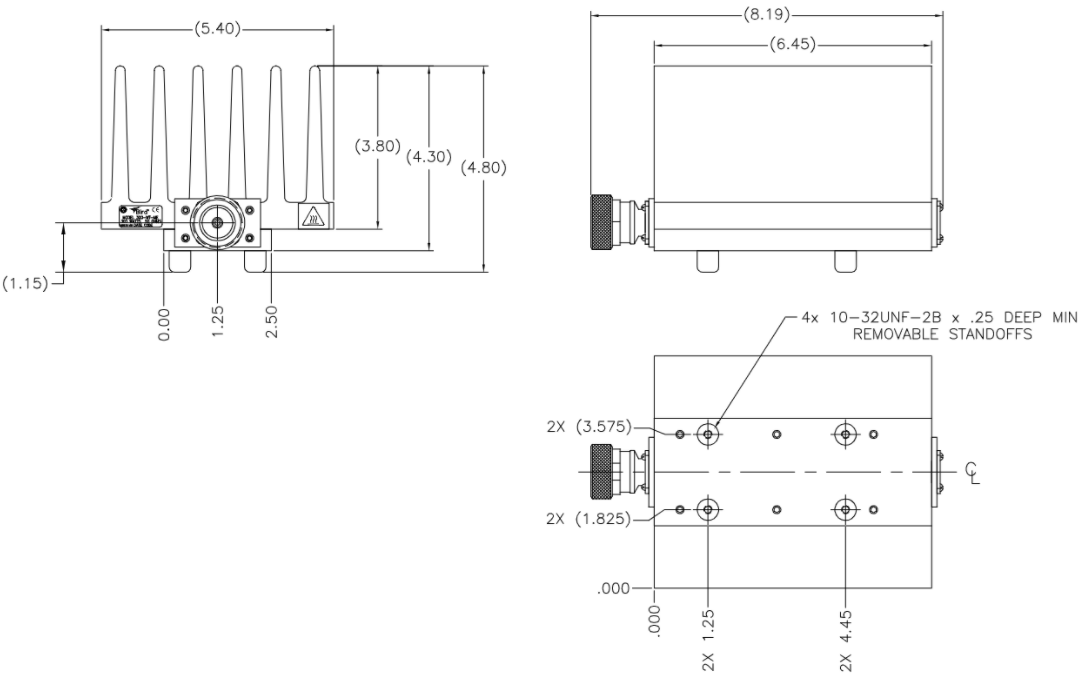

For the 300-WT-ME:

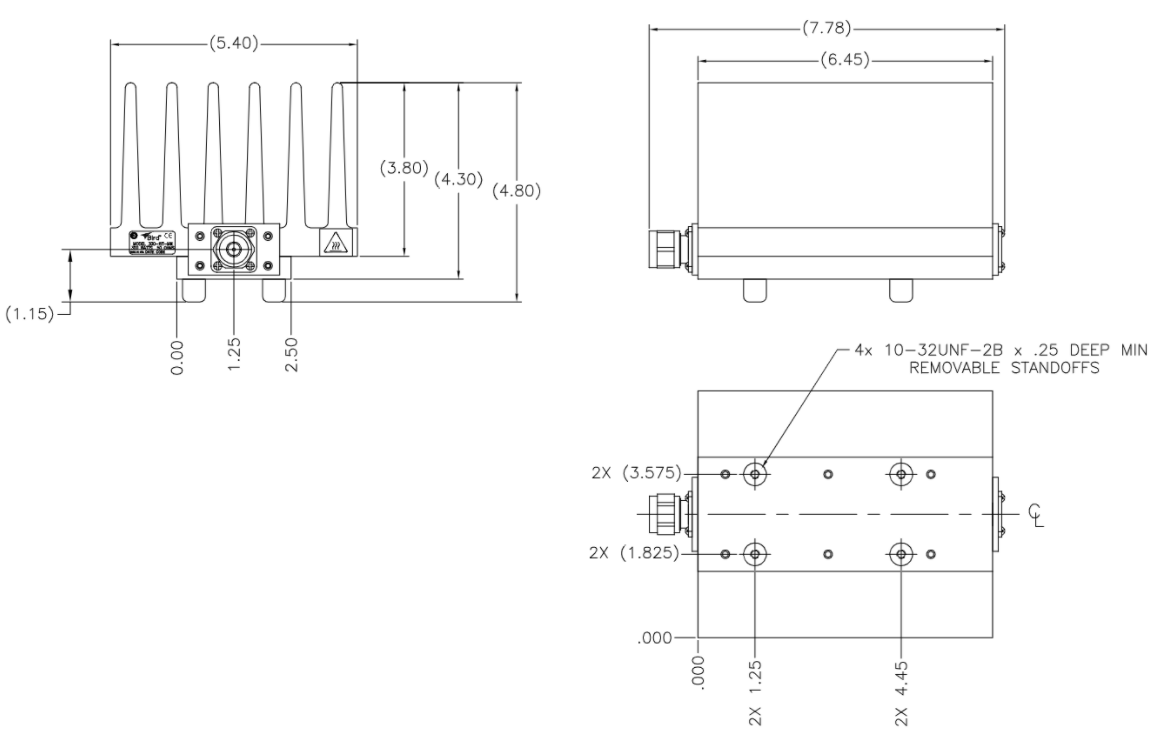

For the 300-WT-MN:

For the 300-WT-QFN:
