Specifications:
- Power Rating:
- 600 WATTS CW
- Frequency Range & VSWR:
- DC to 1 GHz @ 1.10:1 MAX.
- 1 GHz to 2.8 GHz @ 1.20:1 MAX.
- 2.8 GHz to 3 GHz @ 1.30:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Ambient Temperature Range: -40° C to +45° C
- Coolant: 0.7 gal (2.65 liters) Refined Mineral Oil
- Operating Position: Horizontal only
- Finish: Grey Powder Coat

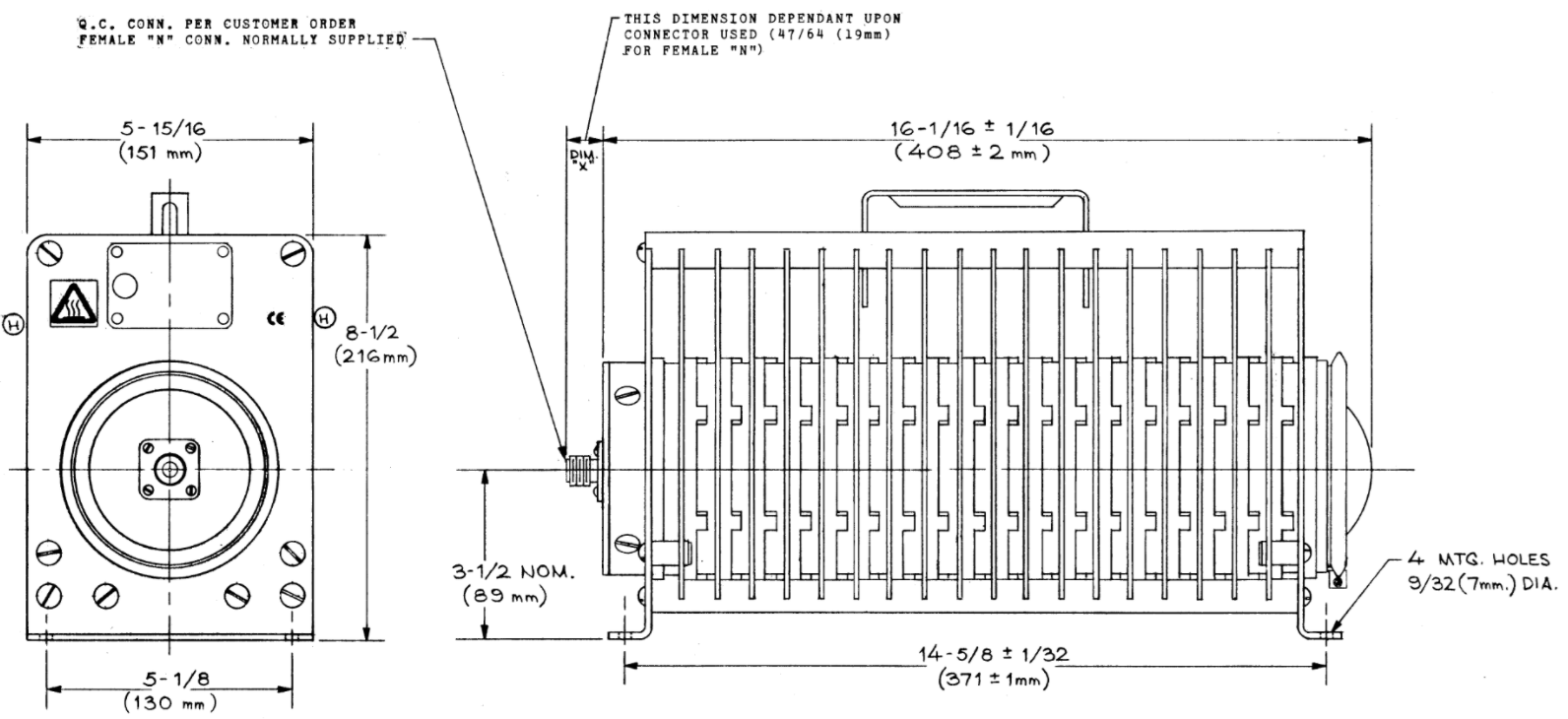

- Nominal Size: 16-1/16" x 5-15/16" x 8-1/2" (for specifics, see images below or attached stp/step files) *
- Weight: Approx. 19.6 LBS
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
