Specifications:
- Power Rating:
- 5000 WATTS CW
- Frequency Range & VSWR:
- DC to 500 MHz @ 1.10:1 MAX.
- 500 MHz to 2 GHz @ 1.25:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Connector: Bird QC, Female LC
- Cooling Method: Force liquid flow
- Water Temperature Range: +5° C to +80° C
- Minimum Flow Rate: 1 gpm (3.8 liters/min) @ 5° C to 4 gpm (15.2 liters/min) @ 80° C
- Max Water Pressure: 80 PSI (5.52 bar)
- Operating Position: Any
- Finish: Bright Nickel Plated

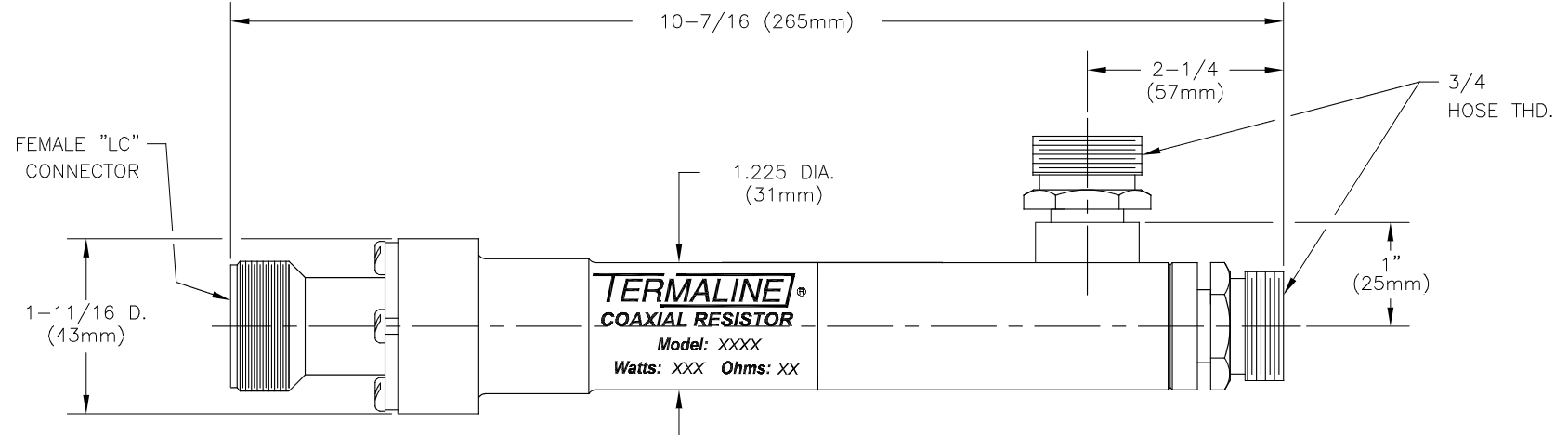

- Nominal Size: 7-23/32" x 1-5/8" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 2.5 LBS (1.2 kg)
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
