Specifications:
- Power Rating:
- 40 kW continuous
- Frequency Range & VSWR:
- 1 kHz to 900 MHz @ 1.10:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Water Temperature Range: +5° C to +60° C
- Coolant: potable or distilled water and up to 50% ethylene glycol
- Minimum Flow Rate: 8 gpm (30.4 liters/min) @ 5° C to 10 gpm (38 liters/min) @ 60° C
- Max Water Pressure: 80 PSI (5.52 bar)
- Connector: 3-1/8" EIA flanged
- Operating Position: Any
- Finish: Black Powder Coat

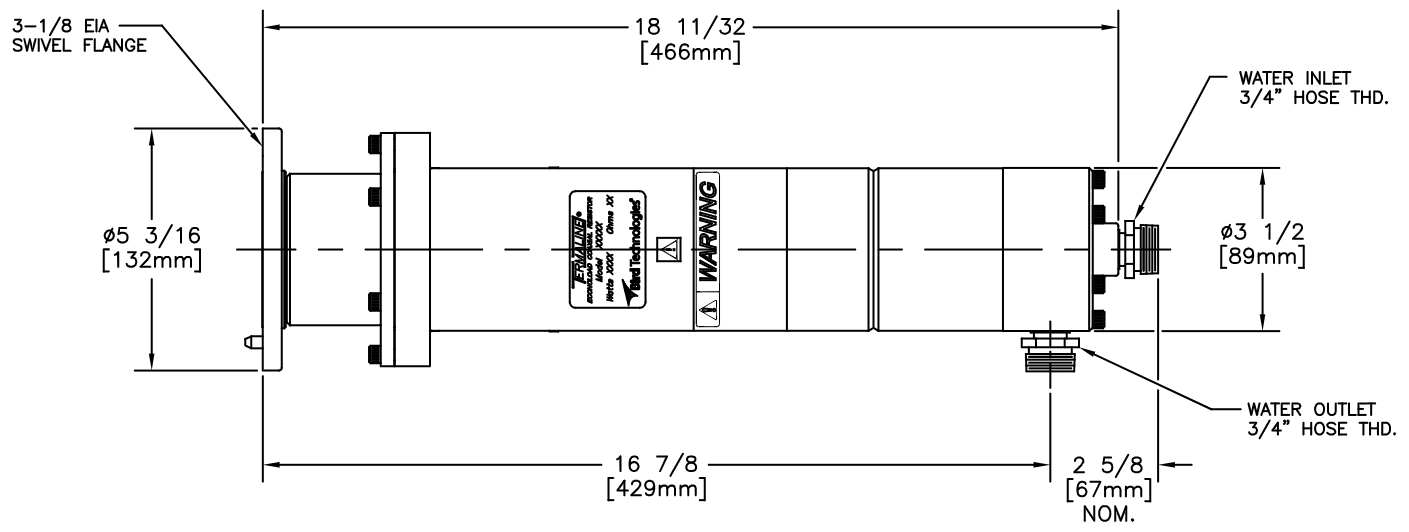

- Nominal Size: 19.5" x 3.5" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 15.5 LBS (7 kg)
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
