Specifications:
- Power Rating:
- 10 kW continuous
- Peak Power Rating:
- 150 kW MAX. for pulse width 1 μS
- Frequency Range & VSWR:
- DC to 400 MHz @ 1.15:1 MAX.
- 400 MHz to 1 GHz @ 1.20:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Coolant: 6-2/3 gal. (25.3 liters) Silicone Oil
- Ambient Temperature Range:
- -40° C to +45° C @ 60 Hz
- -40° C to +40° C @ 50 Hz
- Operating Position: Horizontal only
- Finish: Grey Powder Coat

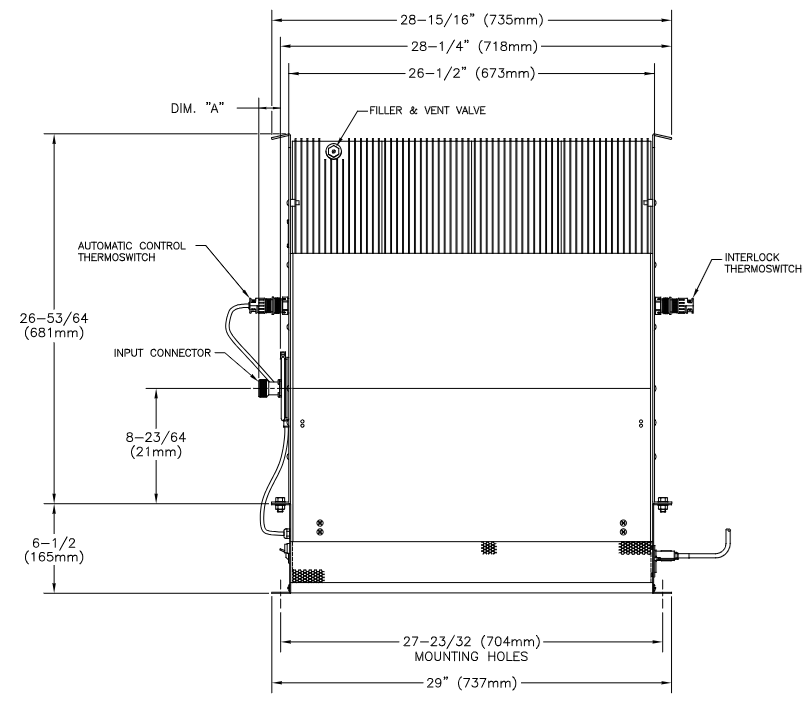

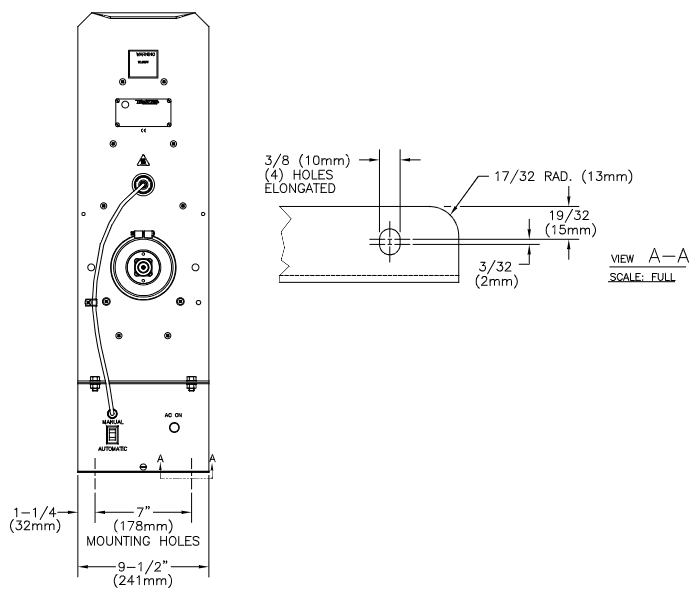

- Nominal Size: 29-7/8" x 9-1/2" x 33-3/8" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 142 LBS
More information on the interlock control circuit here
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
For the 8931-**, 8932-**, 8936-**, and 8937-**:
